PROJECTS
JOONDALUP HEALTH CAMPUS – BLOCK E
Builder: Georgiou
Plumber: Accord Plumbing

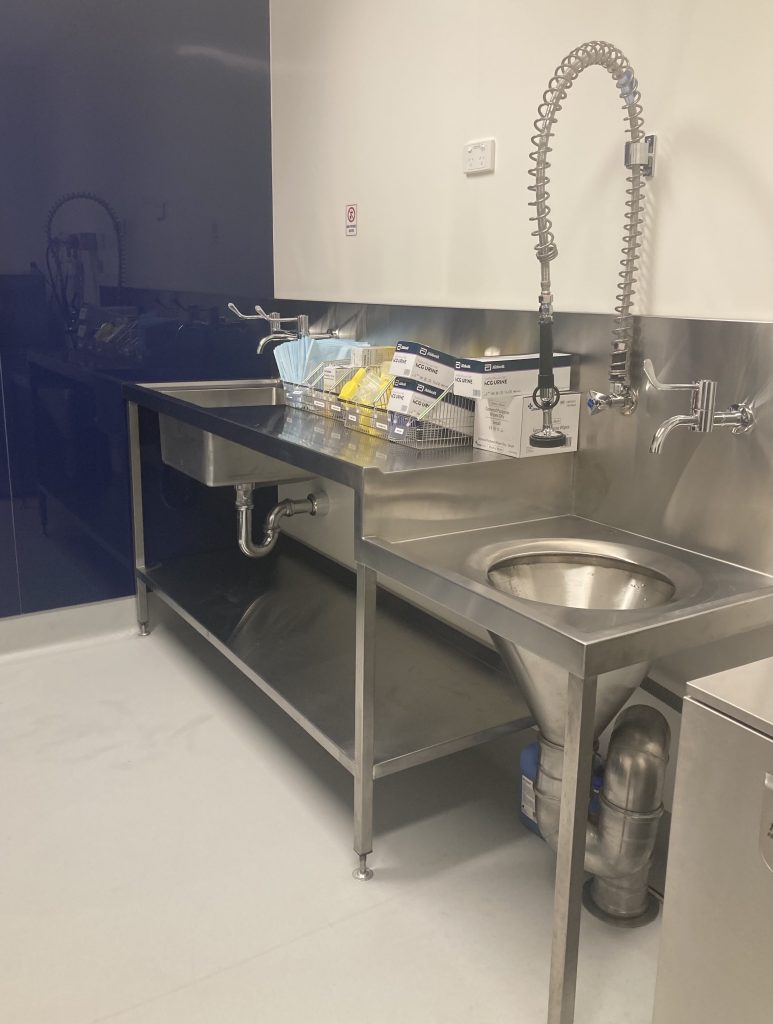

We are proud to have partnered with Georgiou Group and Accord Plumbing to manufacture dirty utility sinks for the new Joondalup Emergency Department.
Our laboratory sinks and bowls are fully custom fabricated and can be supplied with laboratory tapware if required.
Product Details below:
- SIMCRAFT Products 1.2mm Grade 316 S.S. Dirty Utility Sink – 2290mmL x 600mmW x 950mmH with wet edge detail, 150mm rear boxed upstand, Galvanised backing support, 32mm SHS Section free standing frame with adjustable feet and undershelf, 450mmL x 450mmW x 300mmD bowl with 50mm WaterMarked S.S waste outlet.
Comes with drop down Ø350mm WaterMarked Flushing Rim with Ø100mm drop outlet and Ø40mm BSP inlet.
#MadeinWAforWA

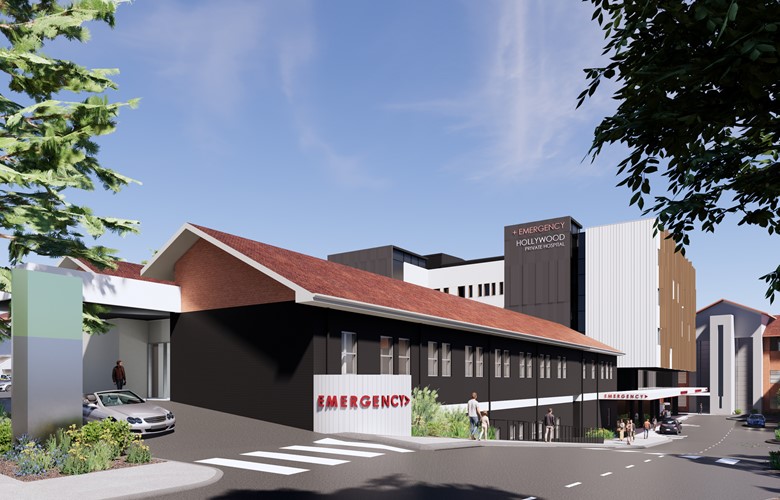

HOLLYWOOD PRIVATE HOSPITAL – EMERGENCY DEPARTMENT
Architect: Hames Sharley Architects
Client: Georgiou Group
Plumber: Accord Plumbing
Products include:

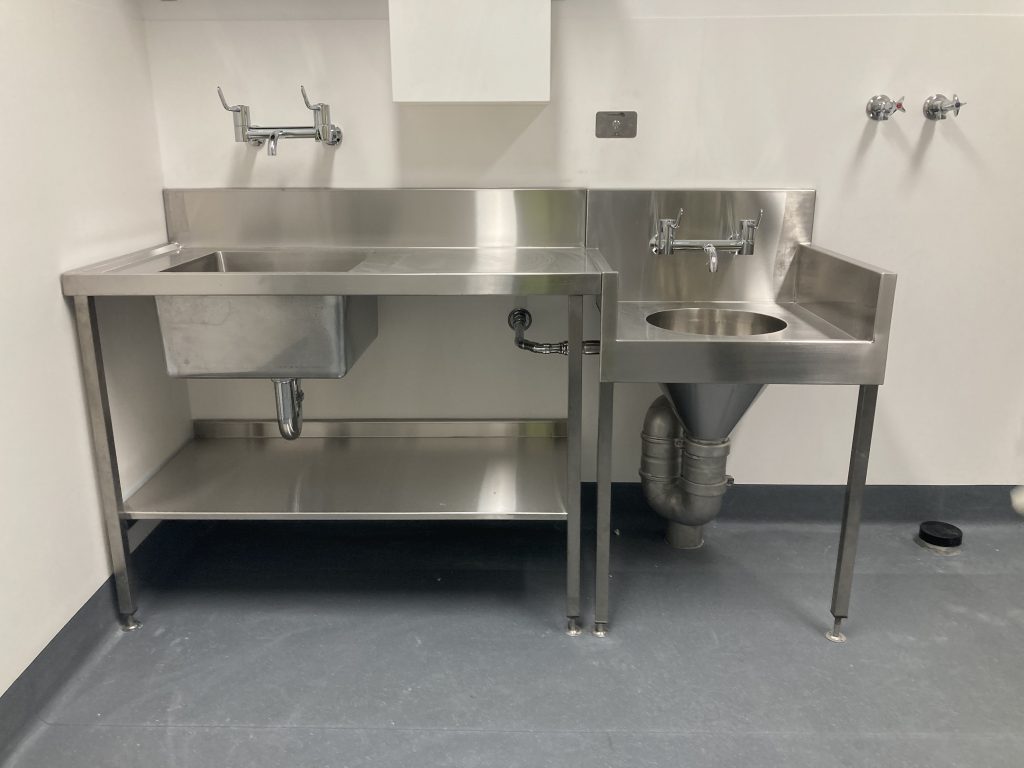

- X 4 DUT.CUSTOM: SIMCRAFT 1.2mm Grade 304 S.S. Dirty Utility Sinks – 1600mmL x 600mmW x 900mmH With Wet Edge Detail, 150mm x 20mm Rear Boxed Upstand, Galvanised Backing Support, 32mm SHS Section Free Standing Frame with adjustable Feet and Undershelf. 450mmL x 450mmW x 250mmD Bowl with 50mm Watermarked S.S Waste, Ø350mm Watermarked Flushing Rim with Ø110mm Offset Drop Outlet and SSØ40mm Inlet and 25mm BSP connection.
We are proud to have partnered with Georgiou Group and Accord Plumbing to supply custom designed Dirty Utility Sinks for the newly built Hollywood Hospital’s Emergency Department. The new Emergency Department is part of a $200 million investment by Ramsay Health Care.
The talented team of Architects at Hames Sharley has delivered on the brief to create a welcoming atmosphere and enhanced patient experience.
The project includes a Triage Reception area with 13 patient bays – one being an isolation room.
#MadeinWAforWA
THE ELFORD - Mt Lawley
Builder: Diverse Project Group

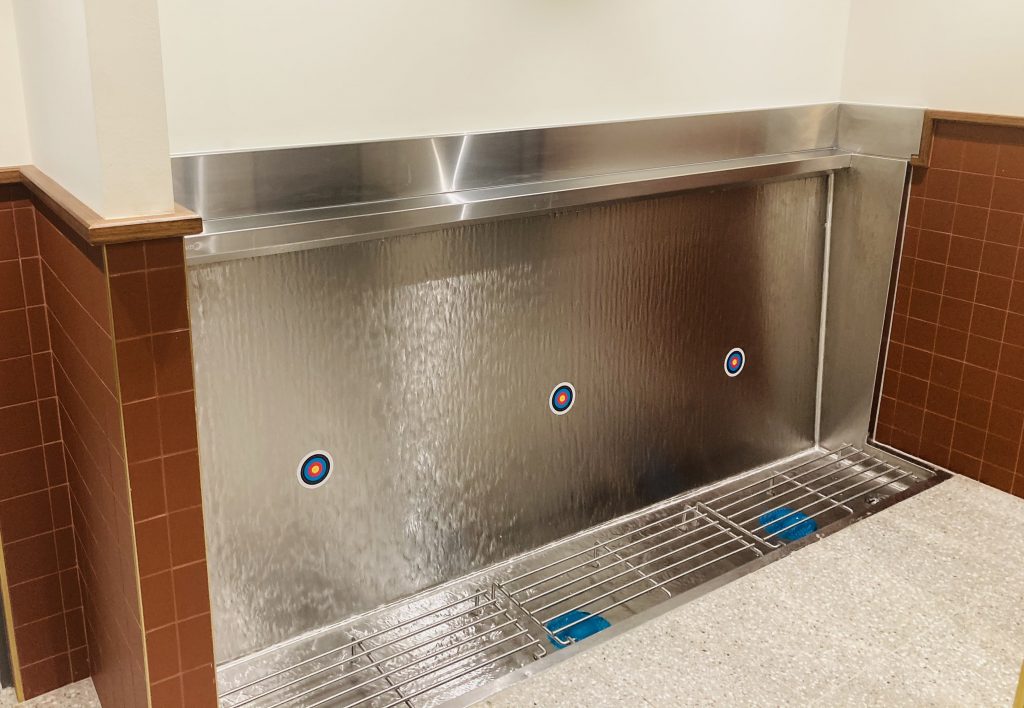

Our Popular Grate Style Urinal has recently been installed at an exciting new hospitality venue, The Elford (formerly The Flying Scotsman) in Mount Lawley.
Product Details below:
- SIMCRAFT PRODUCTS 1.2mm GRADE 304 S.S. WATERMARKED GRATE STYLE URINAL – 2500mm RHO WITH REAR ENTRY INLET AND 100mm OUTLET INCLUDING REMOVABLE S.S. DOME SHAPED GRATE
#MadeinWAforWA
SUBIACO HOTEL REFURBISHMENT
Client: Reece
Builder: Universal Constructions
Architect: Christou Design Group
Plumber: Fairview Plumbing
Products include:

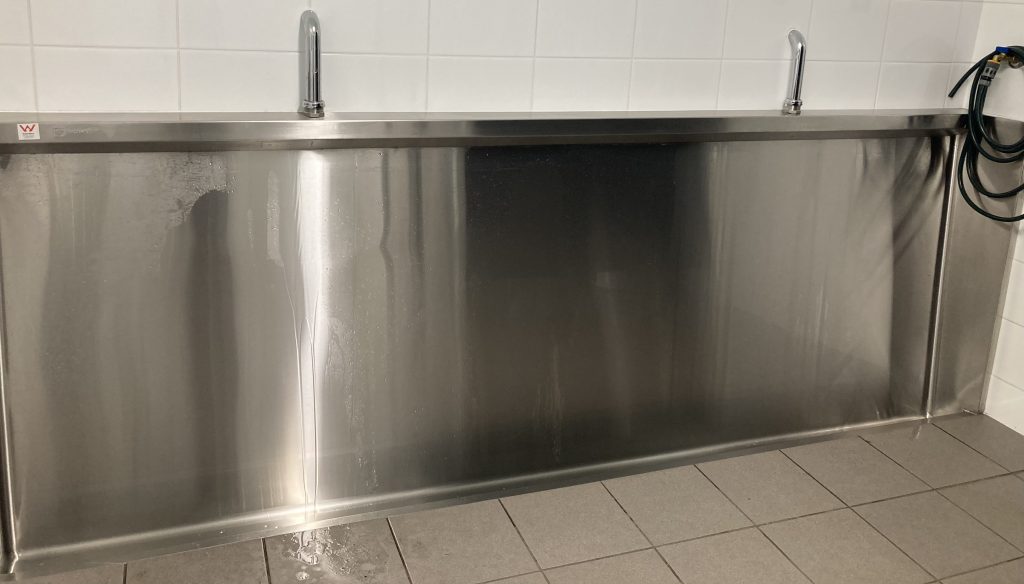

- SIMCRAFT PRODUCTS FSU – 1.2mm GRADE 304 S.S. FLOOR STYLE URINAL – 1995mm x 2135mm L-SHAPED

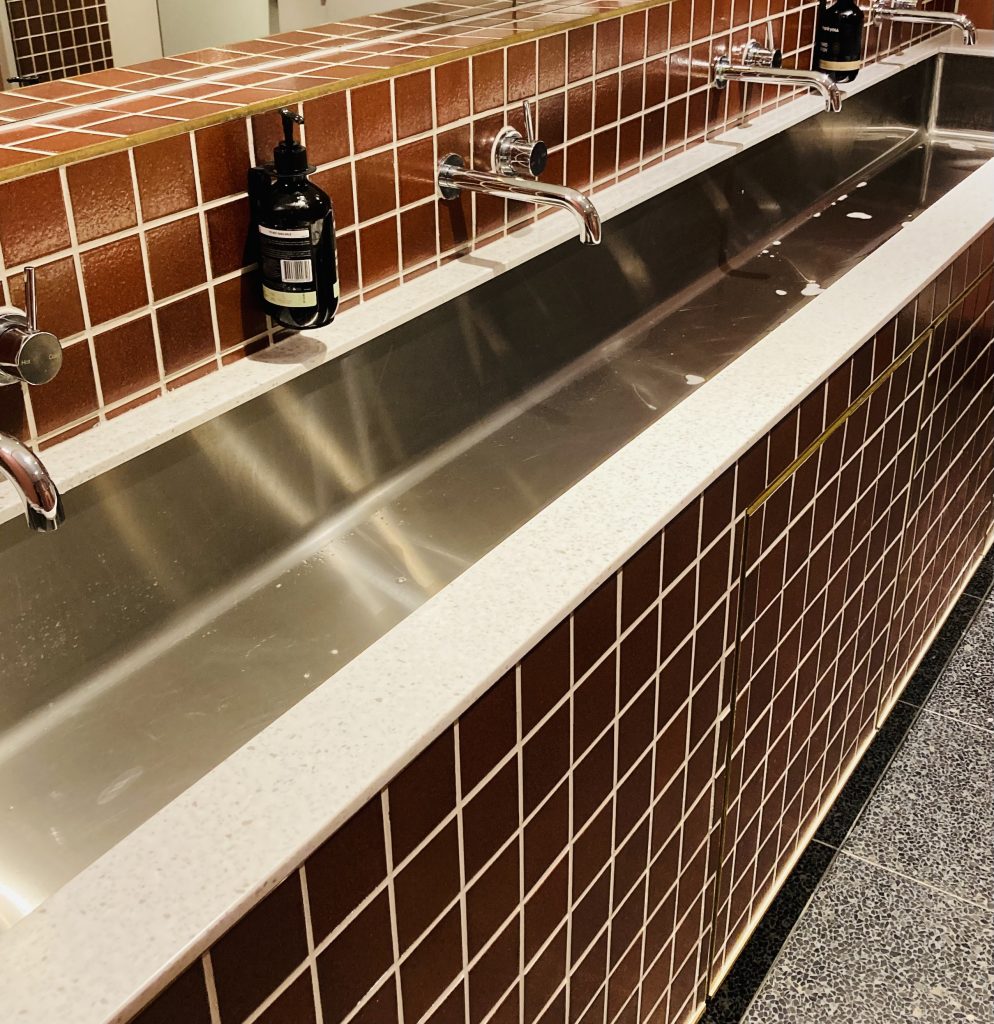

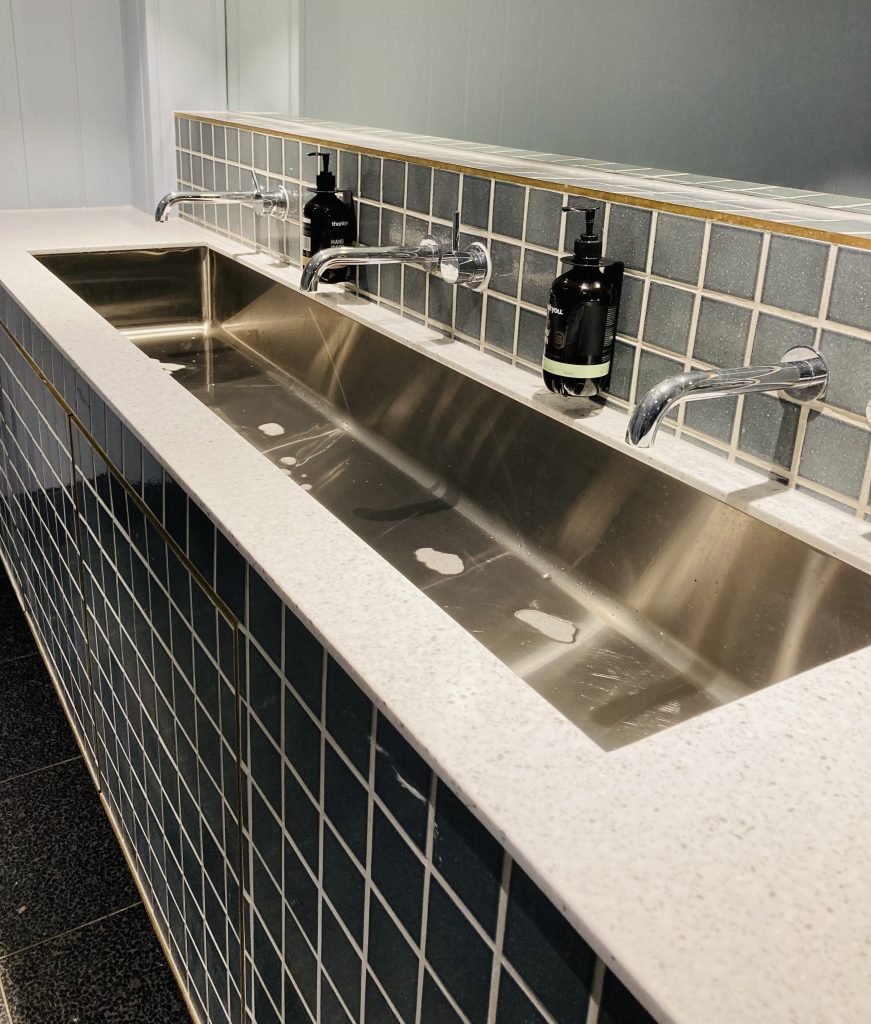

- SIMCRAFT PRODUCTS PRT – 1.2mm GRADE 304 S.S INSET PRACTICAL TROUGH – 1800MM
- SIMCRAFT PRODUCTS PRT – 1.2mm GRADE 304 S.S INSET PRACTICAL TROUGH – 3000MM
#MadeinWAforWA

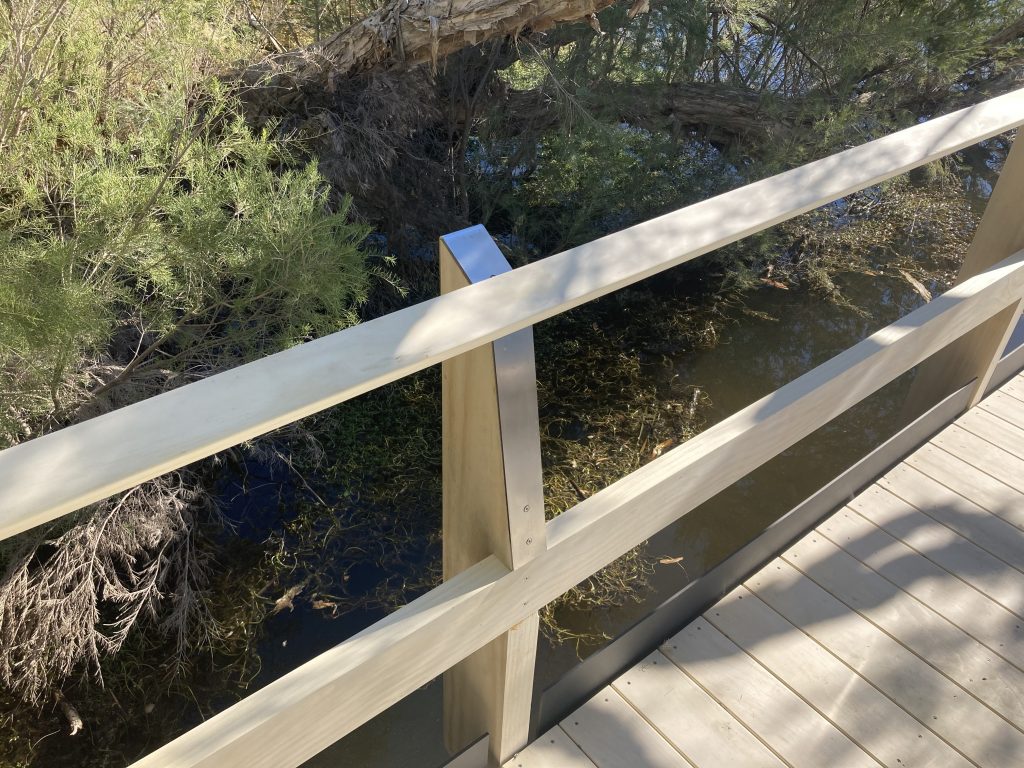

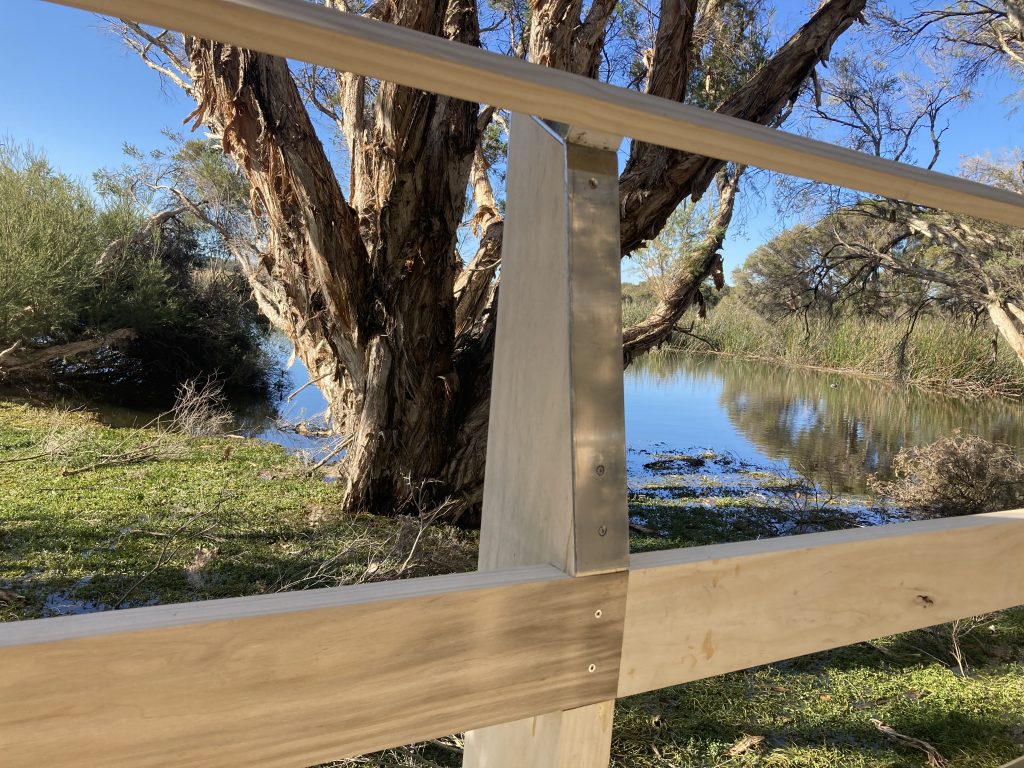

HERDSMAN LAKE WILDLIFE PARK BRIDGE
Client: Fairway Building
Merchant: Bunnings
Products include:
- Custom FRP Bearer Joint,8mm Grade 316S/S – 4×35 degrees (200mm x 360mm)
- Custom FRP Bearer Joint,8mm Grade 316S/S – 4×27 degrees (200mm x 360mm)
- Custom Corner Bracket 1 – Grade 316 S/S EA 50mm x 50mm x 120mm high
- Custom Corner Bracket 2 – Grade 316 S/S EA 90mm x 90mm x 50mm wide
- Custom Fabricated S/S Post Capping
- Custom Railing Post Bracket – 316 S/S 100mm x 100mm x 6mm
- Custom Cleat 8mm 316 S/S – 42 x 78 degrees (150mm x 350mm with 4 M12)
#MadeinWAforWA
FREMANTLE INDOOR BEACH VOLLEYBALL CENTRE
Client: Reece
Builder: Anika Plumbing & Gas
Products:

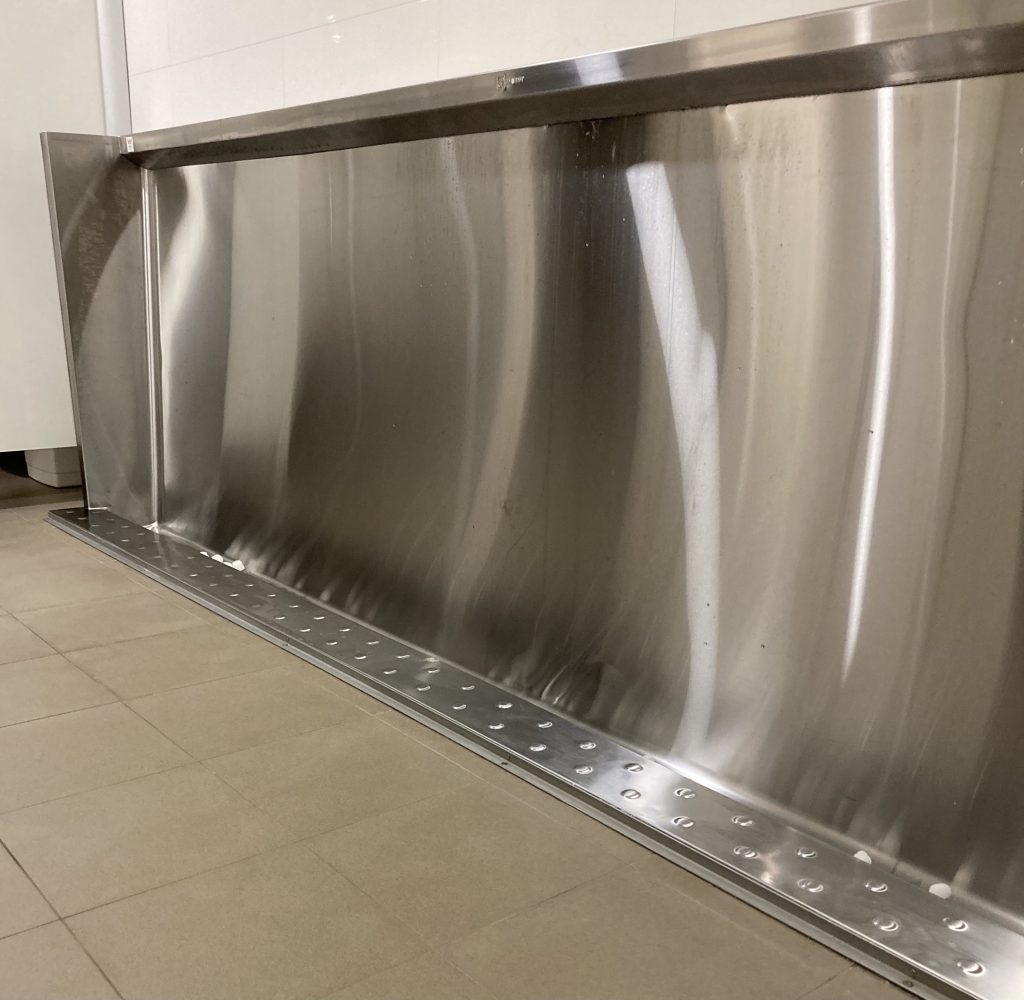

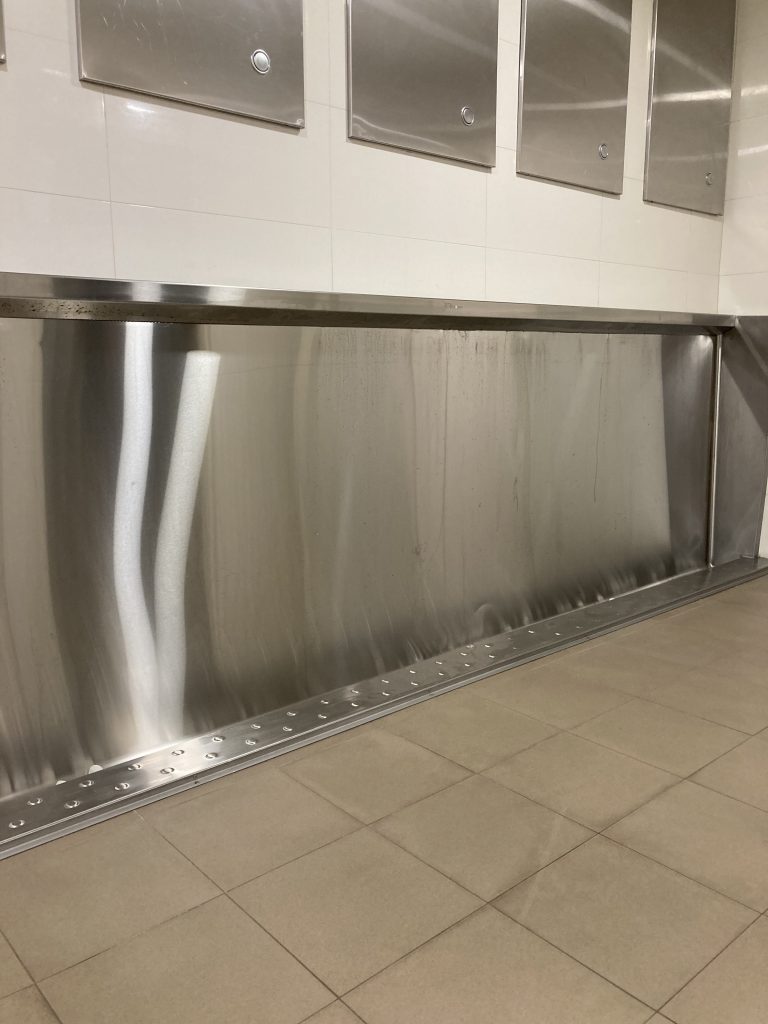

- SIMCRAFT PRODUCTS 1.2mm GRADE 304 S.S. TREAD STYLE URINAL – 3400mm
#MadeinWAforWA

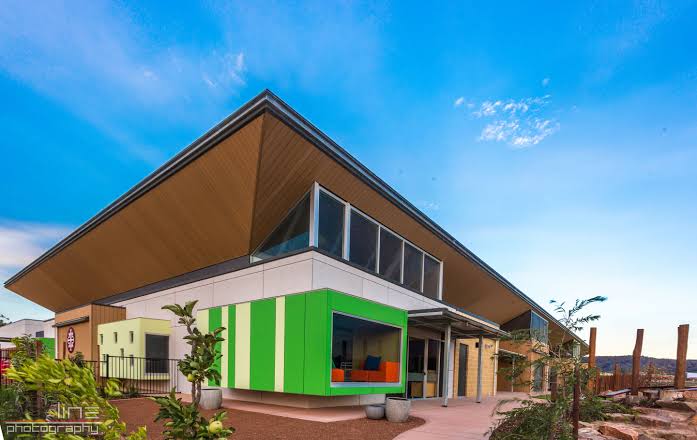

SALVADO CATHOLIC COLLEGE – Byford
Client: Galvins Plumbing
Builder: Universal Constructions
Architect: Paterson Group of Architects
Products include:

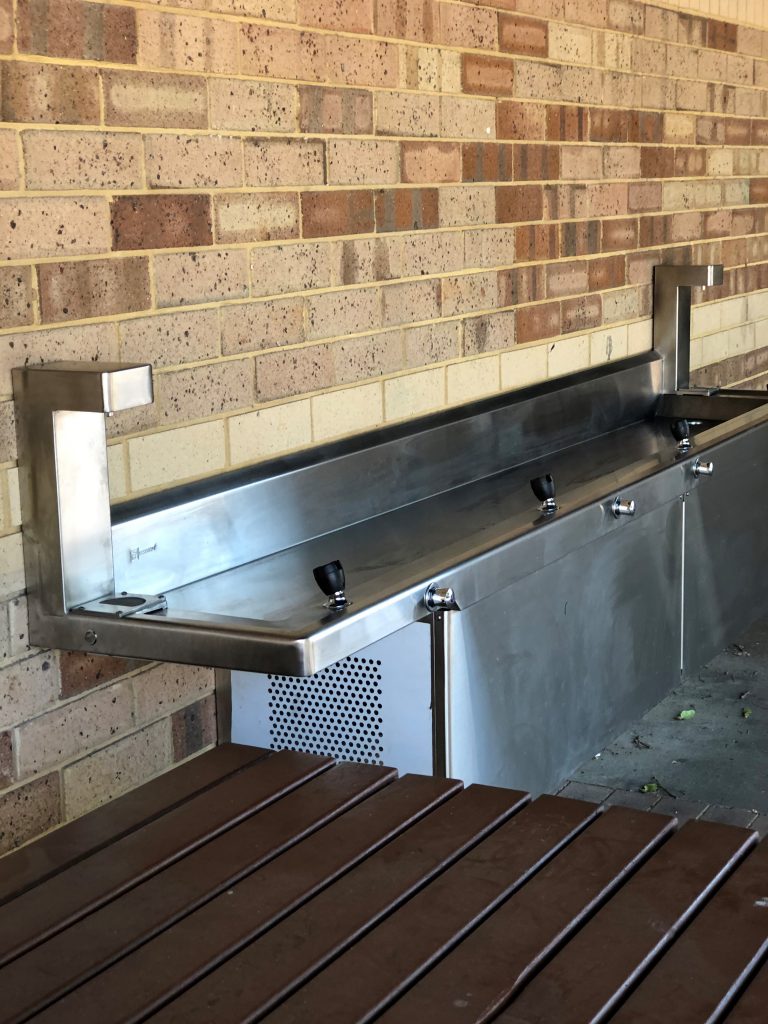

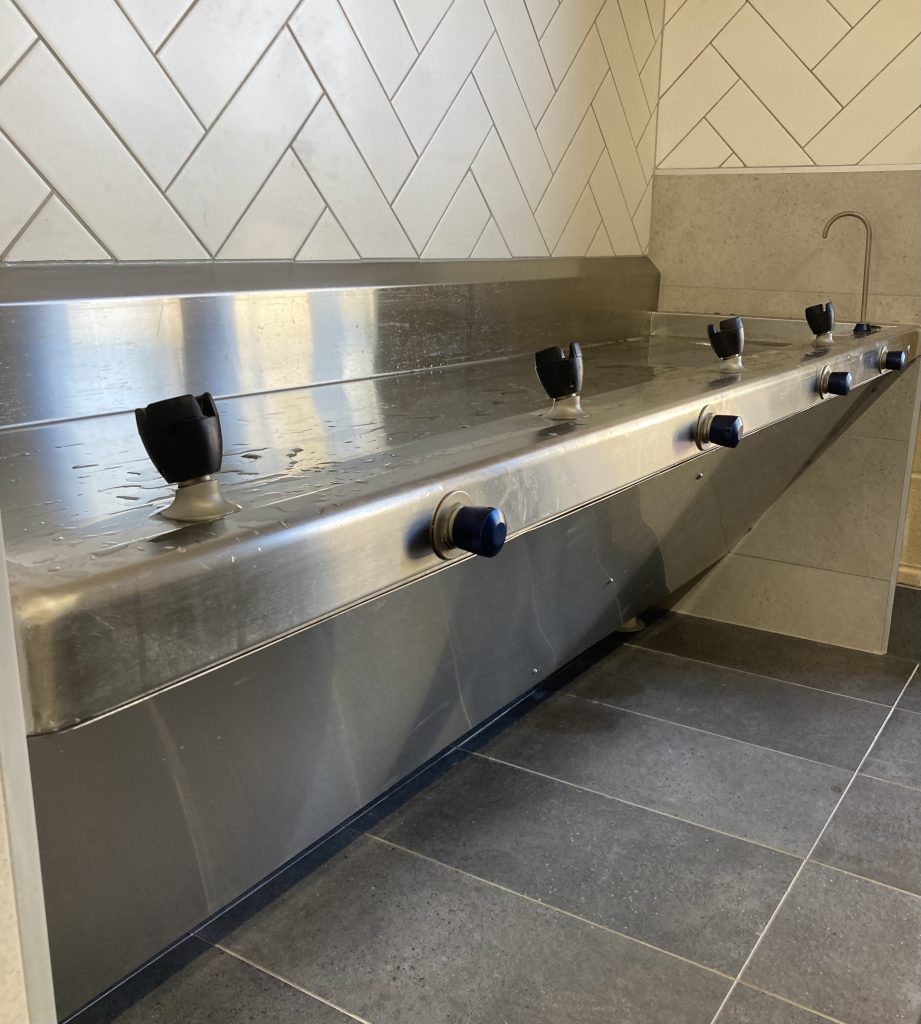

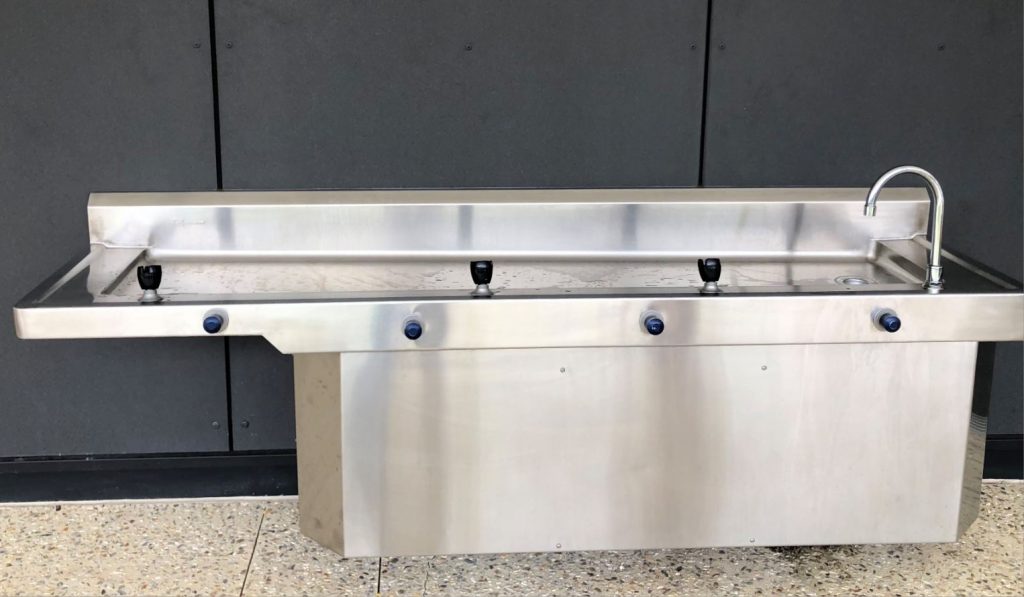

- SIMCRAFT PRODUCTS UDT– 1000mm & 2000mm long Wall hung Universal Drink Trough – Lead Free. Chiller unit enclosed in S.S. Shroud

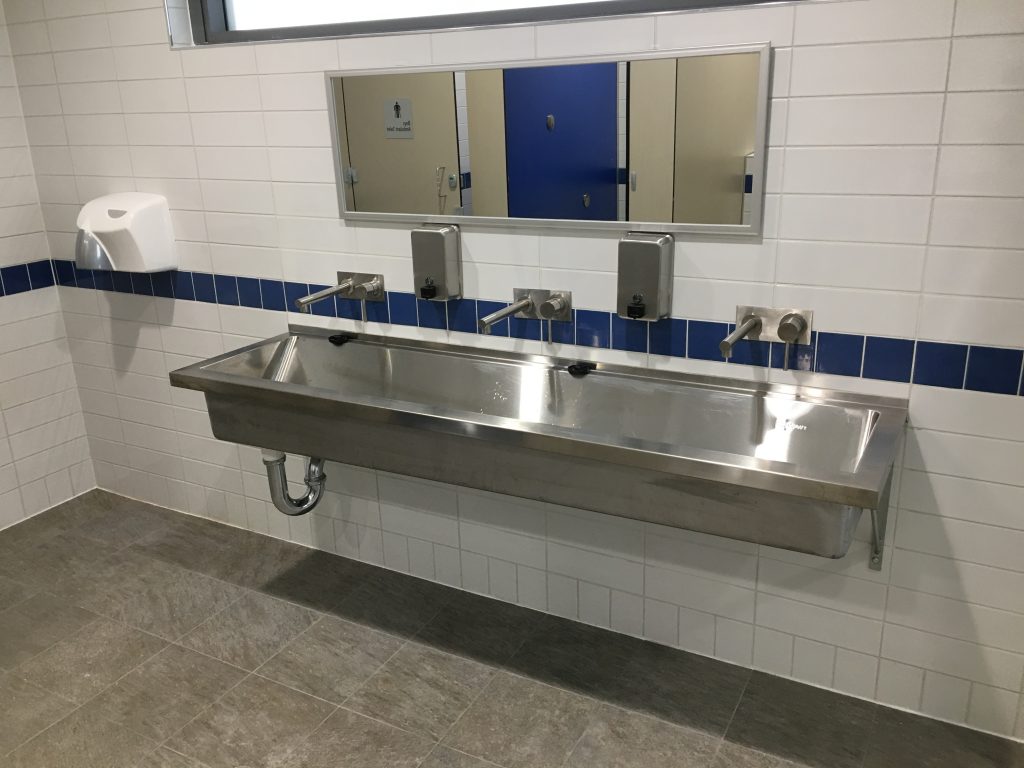

- SIMCRAFT PRODUCTS ABT – 2400mm ABLUTION TROUGH

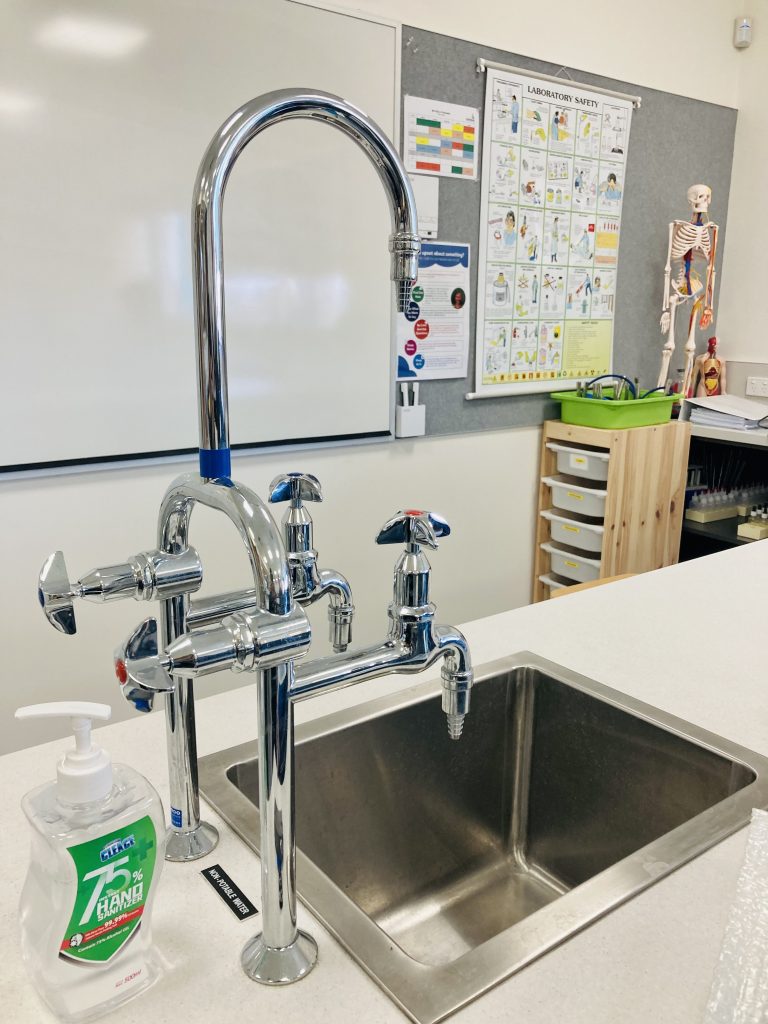

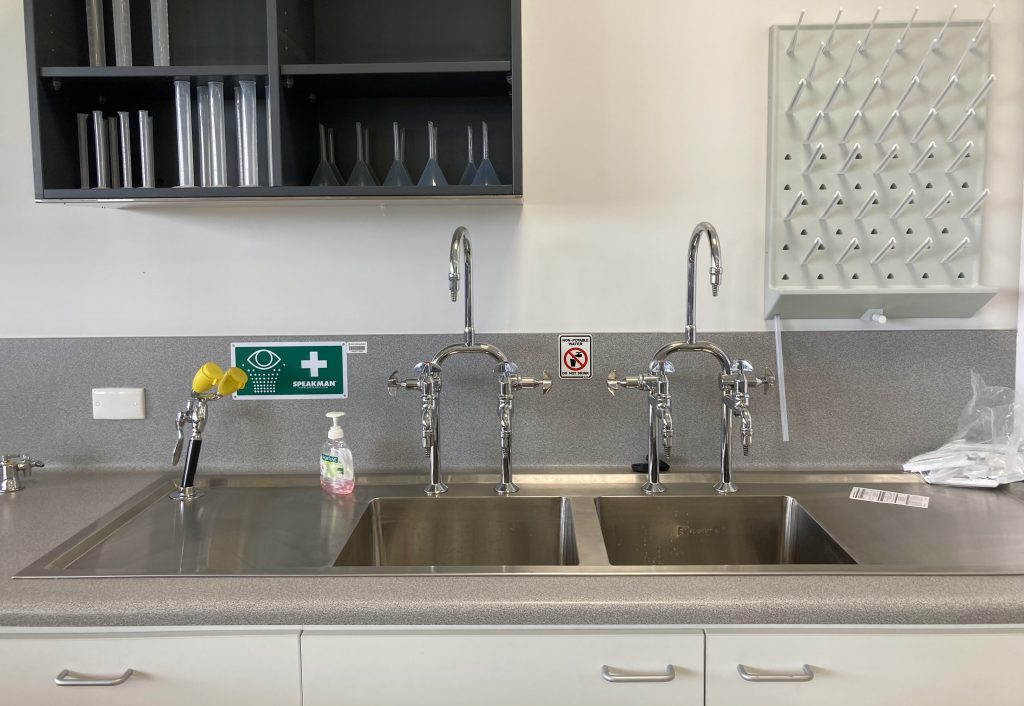

- SIMCRAFT PRODUCTS Grade 316 SS Inset Laboratory Sinks in various sizes
- SIMCRAFT PRODUCTS Undermounted Eye Wash Bowl
#MadeinWAforWA
NORTHSHORE CHRISTIAN GRAMMAR SCHOOL - Alkimos
Architect: Taylor Robinson Chaney Broderick Architects
Client: De Francesch Builders
Merchant: Harvey Norman Commercial
Products:
- SIMCRAFT PRODUCTS ABT 1.2mm Grade 304 S.S. Ablution Trough – 1500mmL x 485mmW x 215mmD RHO with rear 300mm boxed Upstand with Radius Edge, Galvanised Wall Brackets and 50mm Watermarked Plug and Waste.
- SIMCRAFT PRODUCTS Custom LSTBDD 1.2mm Grade 316 SS Inset Laboratory Sink – 1800mmL X 550mmW with central twin 450mmL X 330mmW X 250mmD Bowls, Double Drainer, Wet Edge Detail, Inset Clips and 50mm S.S. Grade 316 PLUG & WASTE. Include X 4 bossed tapholes.
- SIMCRAFT PRODUCTS Custom LAB 1.2mm Grade 316 S.S. Laboratory Bowl – 450mmL X 330mmW X 250mmD with Inset Clips and 50mm S.S. 316 PLUG & WASTE.
- SIMCRAFT PRODUCTS UDT 1.2mm Grade 304 S.S Wall Hung Universal Drink Trough – 1470mmL x 500mmW LHO with Upstand Folder placed behind cladding. Chiller Unit enclosed in S.S. Shroud. Disabled Access, wall brackets, 50mm Watermarked PVC Plug & Waste and 3 Pre-Plumbed Bubblers & Valves.
#MadeinWAforWA

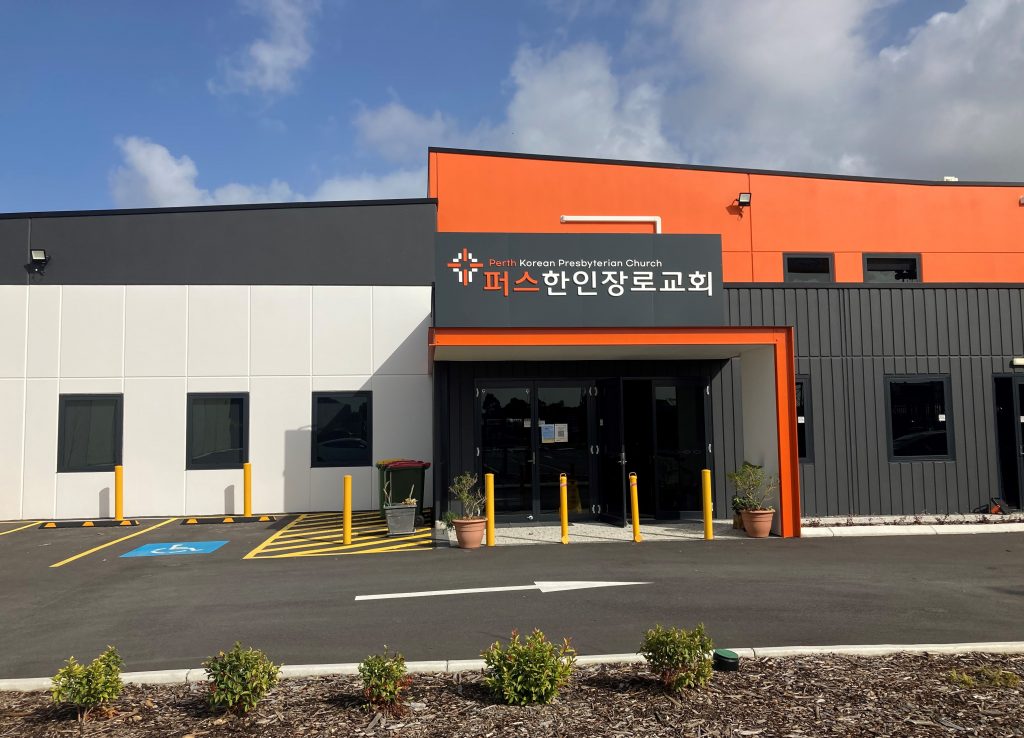

PERTH KOREAN PRESBYTERIAN CHURCH
Client: Mapel Building Group
Products:

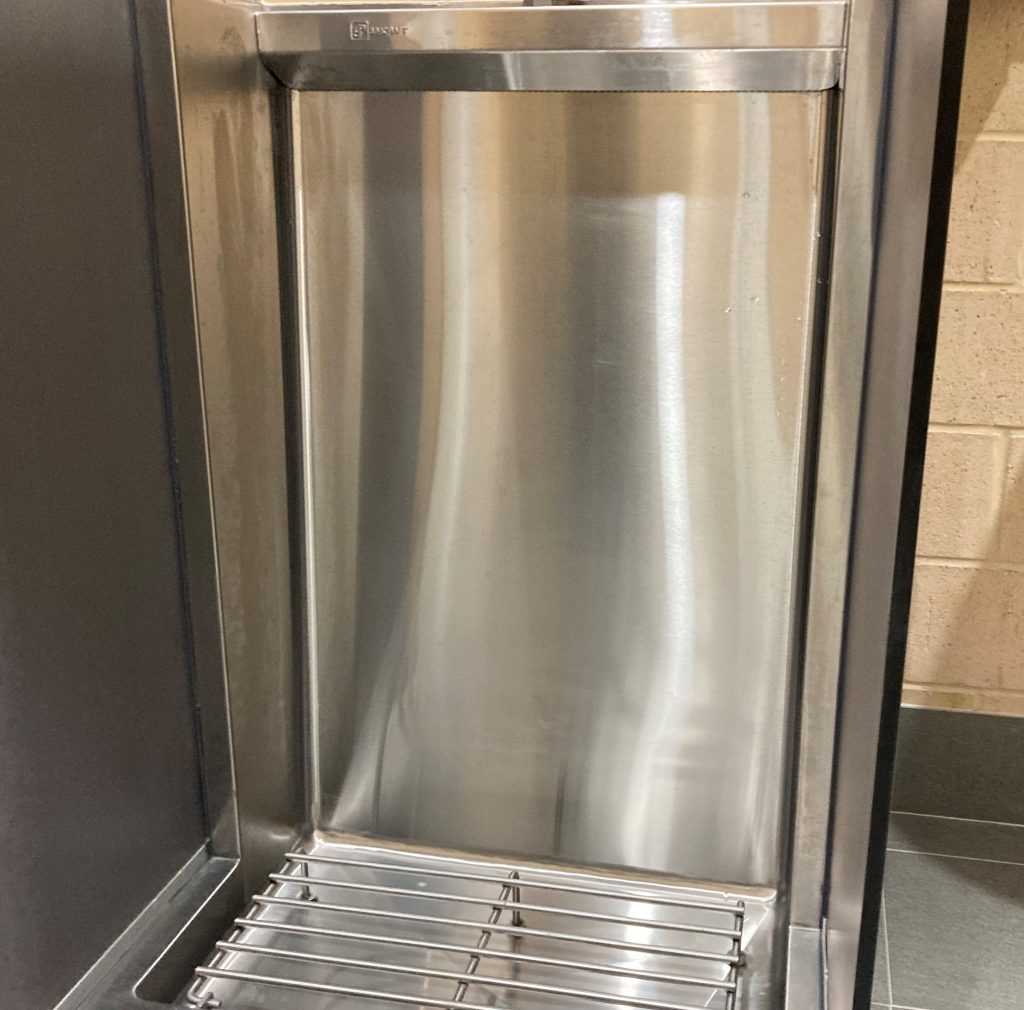

- 2 SIMCRAFT PRODUCTS 1.2mm GRADE 304 S.S. WATERMARKED GRATE STYLE URINAL – 750mm RHO WITH TOP ENTRY INLET AND 100mm OUTLET INCLUDING REMOVABLE S.S. DOME SHAPED GRATE
#MadeinWAforWA
DAVALLIA PRIMARY SCHOOL - Duncraig
Client: Modus Property
Products:
- 3 SIMCRAFT PRODUCTS 1.2mm GRADE 304 S.S. FLOOR STYLE URINALS – 2975mm L; 2985mm L & 3030mm L
- 3 SIMCRAFT PRODUCTS 1.2mm GRADE 304 S.S. PRACTICAL TROUGHS – 1500mm L x 450mm W x 200mm D Including 80mm rear hob with tile lip, Galvanised wall brackets and 50mm Watermarked S.S/PVC Plug & Waste. Pre-Plumbed with x3 time-flow pillar taps.
#MadeinWAforWA
EASTERN HILLS SENIOR HIGH SCHOOL – Mt Helena
Client: Reece Morley
Builder: H S Hyde & Son
Specifier: Alphazeta Group

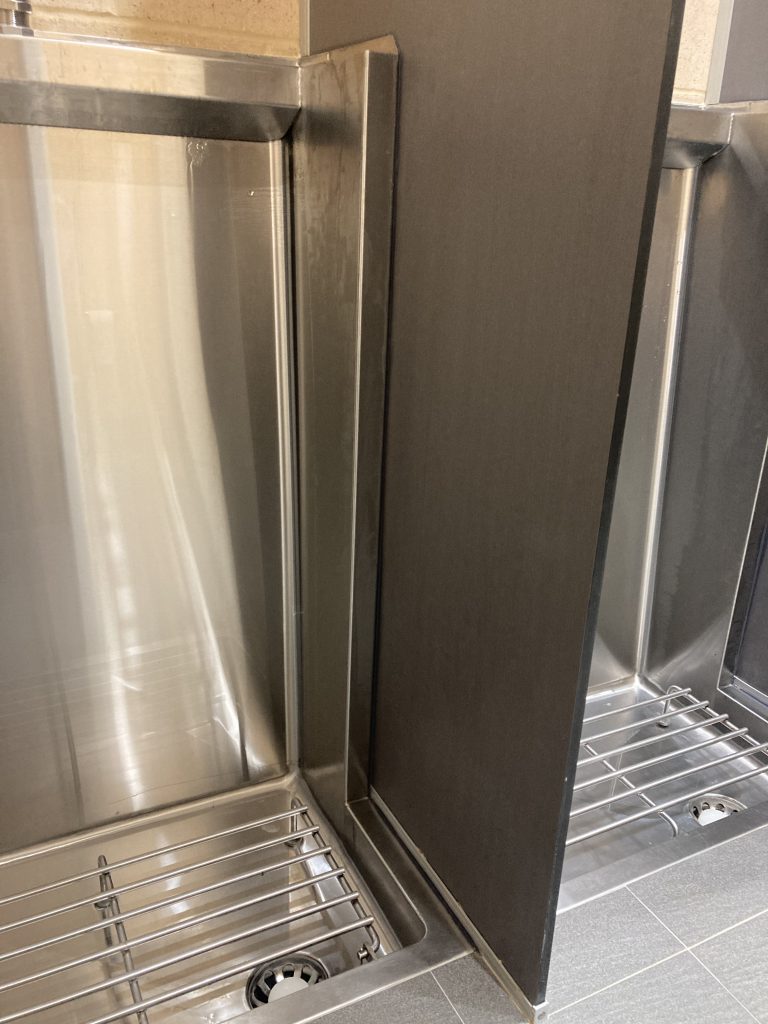

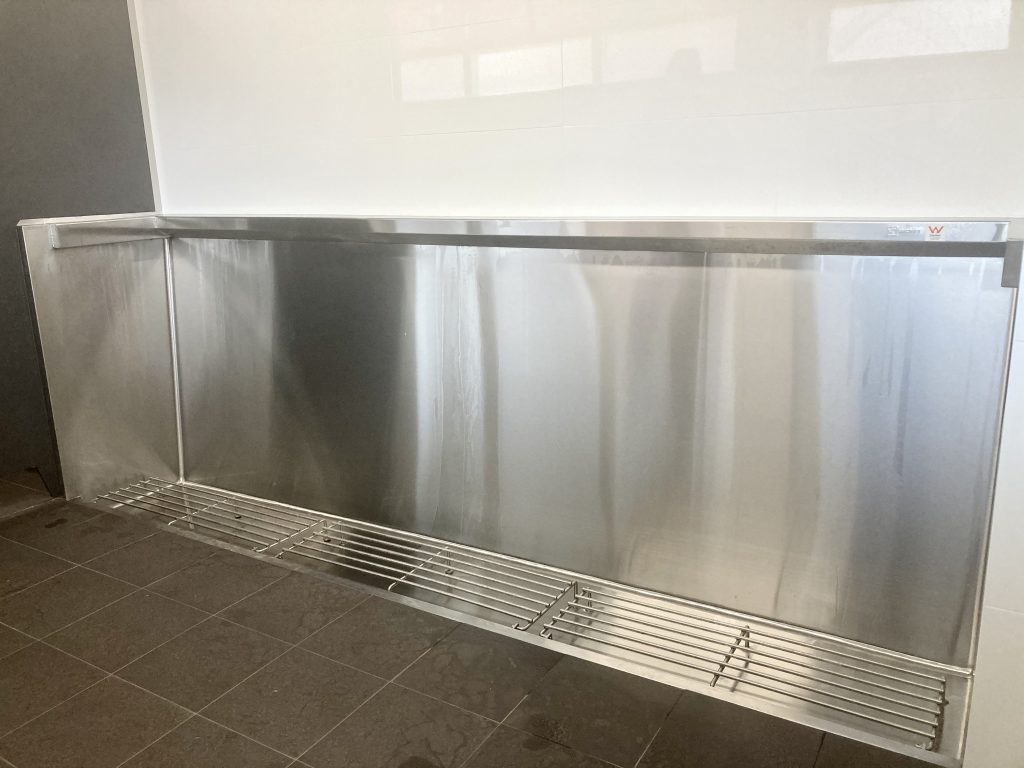

Our robust Enclosed Grate, high-traffic Urinal was a functional choice for the Eastern Hills Secondary School. With a large, grated catchment area and enclosed sides, it offers protection for the surrounding walls. The flushing sparge covers the full length of the rear of the unit as well as both side panels for complete hygiene after every flush.

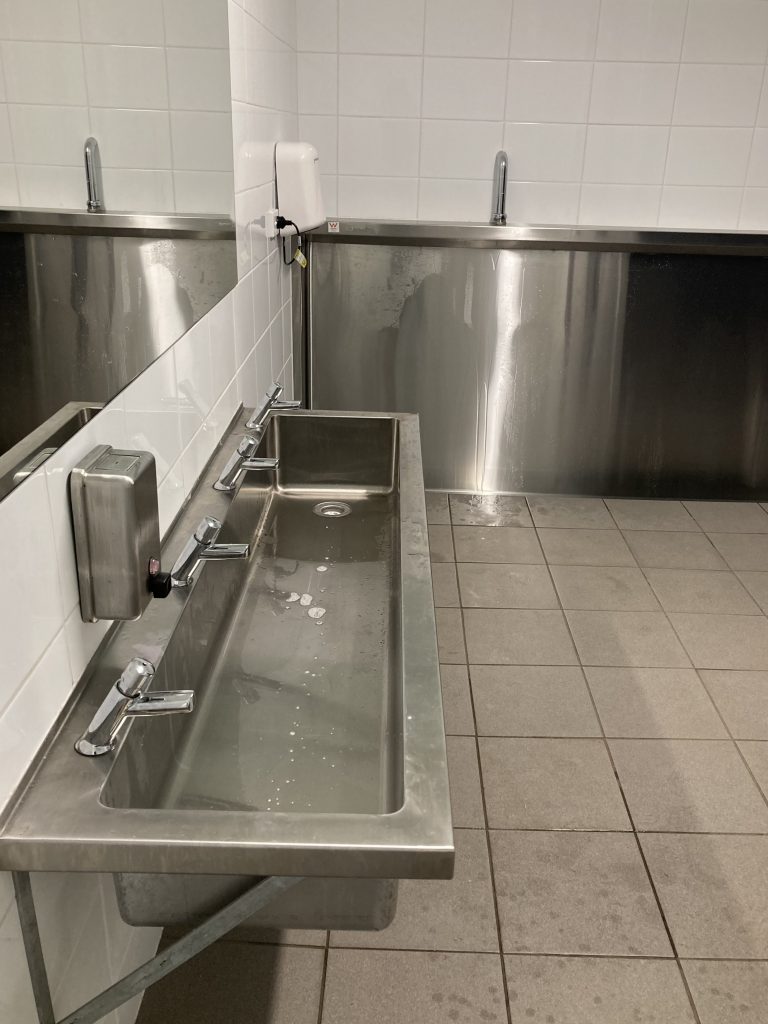

Also featured in the school is our popular Practical Troughs in 3 Metres and 2.2 Metres lengths.
Feel free to get in touch with us to discuss solutions for your next project.
Products include:

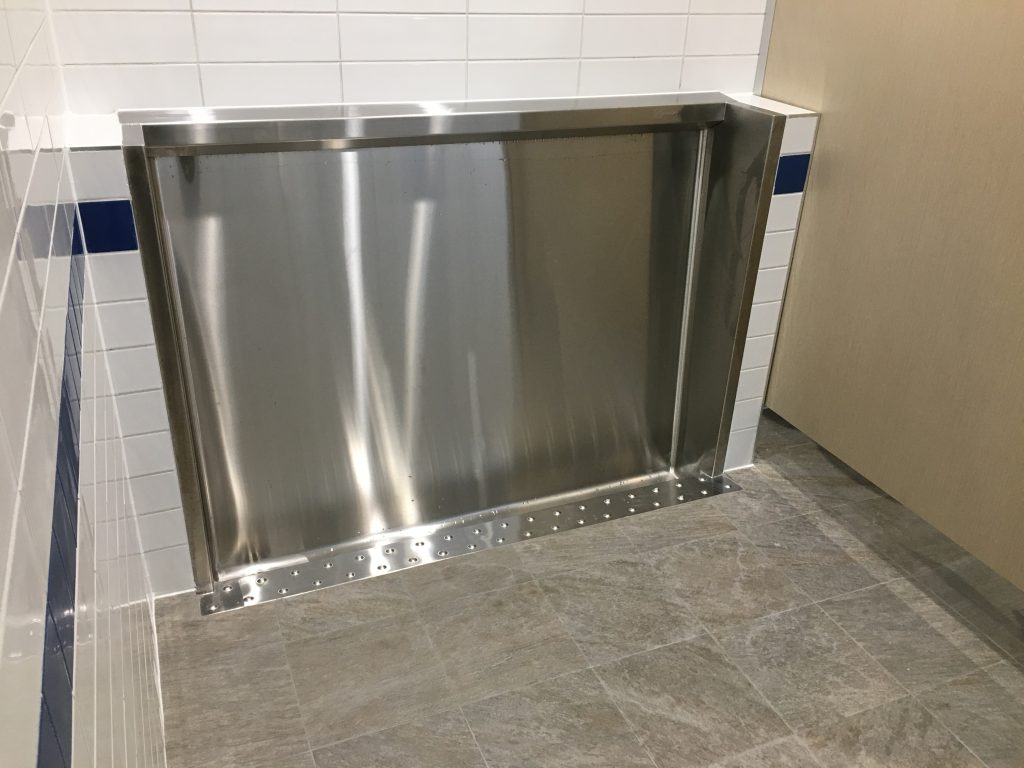

- SIMCRAFT PRODUCTS ESU – 3000mm Enclosed Grate Style Urinal

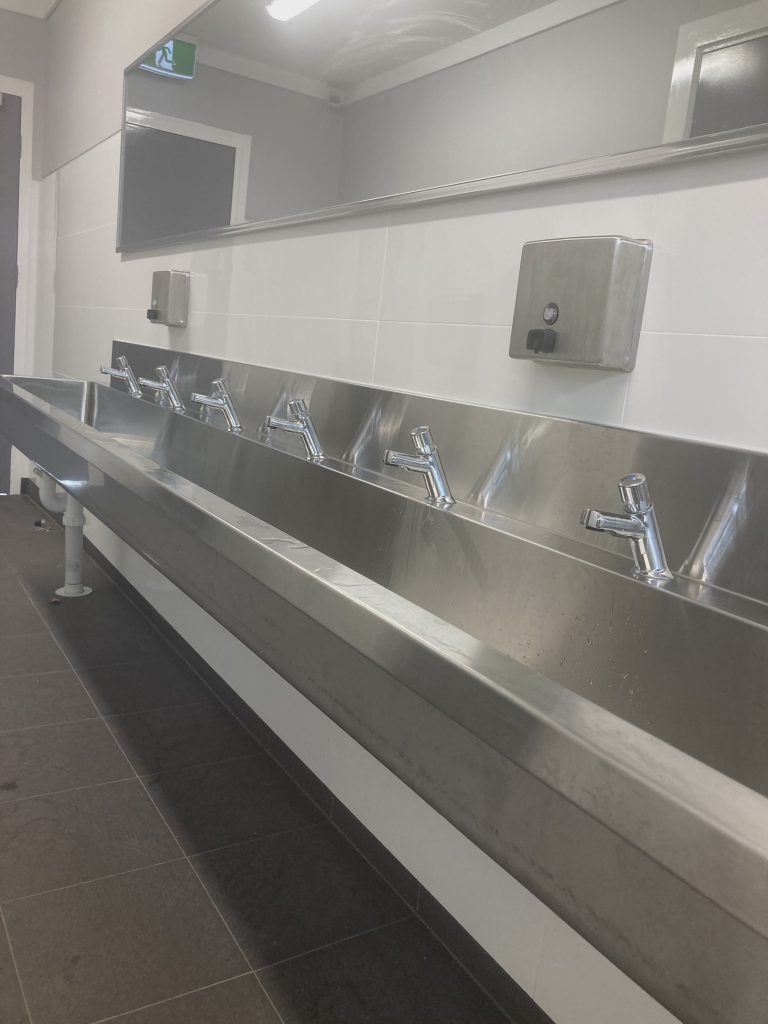

- SIMCRAFT PRODUCTS PRT – 2200mm & 3000mm PRACTICAL TROUGHS
#MadeinWAforWA
STAR OF THE SEA CATHOLIC COLLEGE – Rockingham
Client: Star of the Sea Catholic College
Builder: Firm Construction
Plumber: Selected Plumbing PTY Ltd.
Merchant: Harvey Norman Commercial.
Simcraft Products are proud to have been involved in Stage 9B of Star of the Sea Catholic College Project with high calibre stakeholders such as Firm Construction and Selected Plumbing.
We supplied high quality, West Australian Manufactured Plumbing Fixtures in the last quarter of 2019.
Products include:
- SIMCRAFT PRODUCTS TSU– 1500mm L Tread Style Urinal
- SIMCRAFT PRODUCTS ABT – 1800mm & 2000mm ABLUTION TROUGHS
- SIMCRAFT PRODUCTS LARGE CLEANER SINK CLS.L
- SIMCRAFT PRODUCTS UDT – Wall hung, LEAD FREE Universal Drink Trough
#MadeinWAforWA

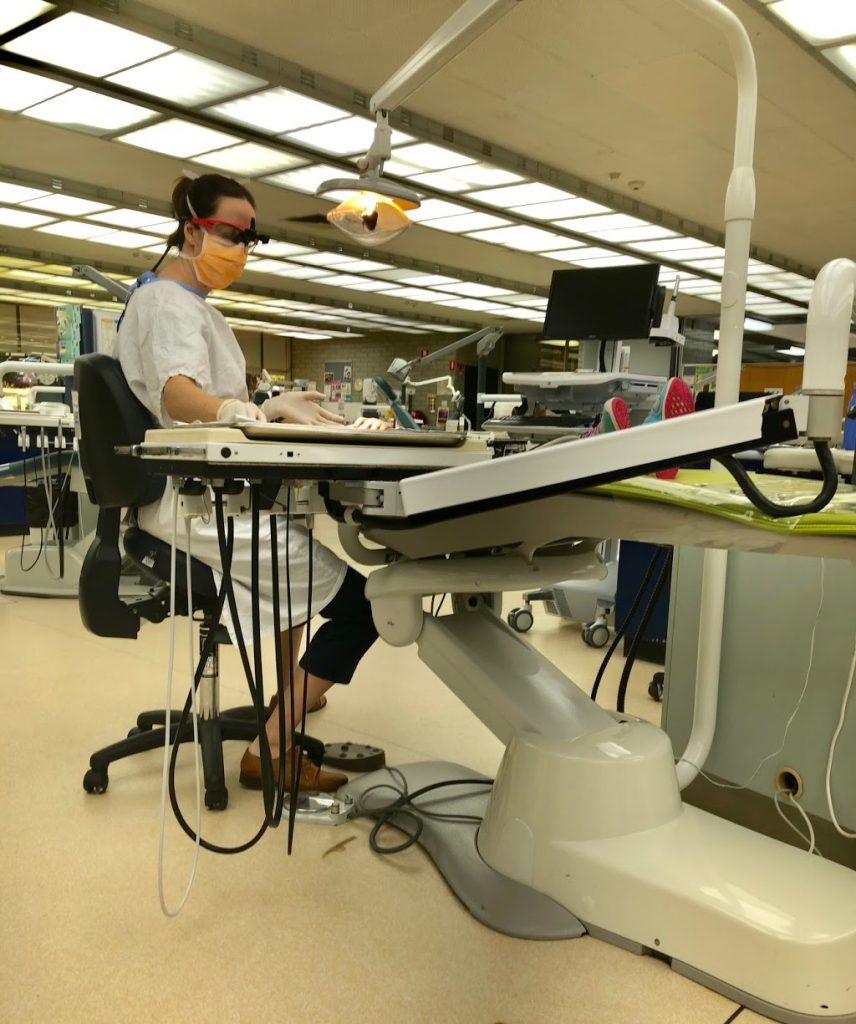

MT HENRY DENTAL CLINIC - Salter Point
Client: SHAPE Australia
Products include:

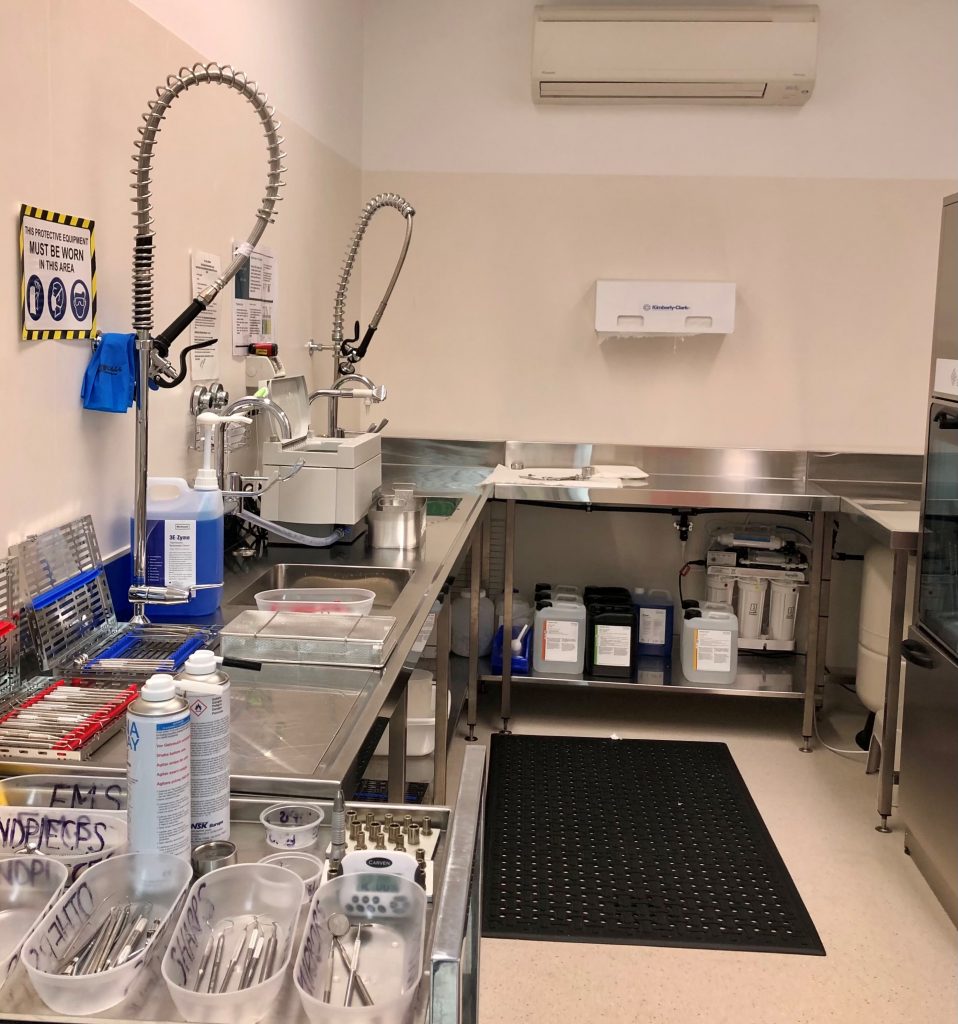

- SIMCRAFT Stainless Steel Custom Dirty Utility Sink with integrated flushing rim and laboratory bowls.

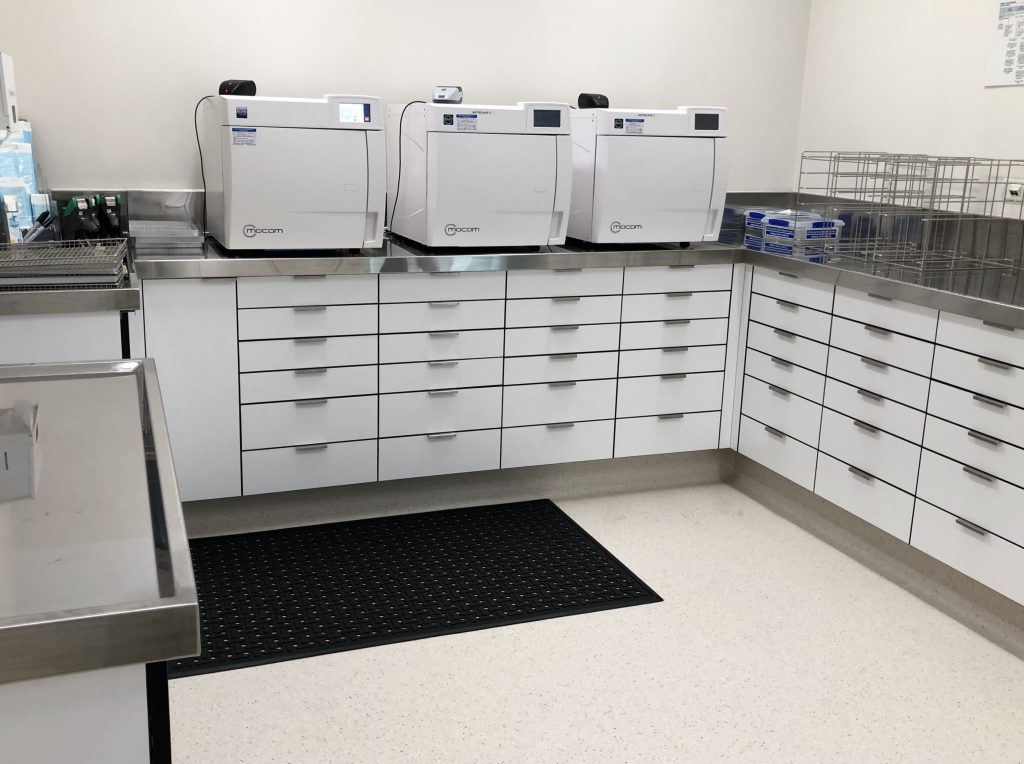

- SIMCRAFT custom Stainless-Steel Benches in various dimensions.

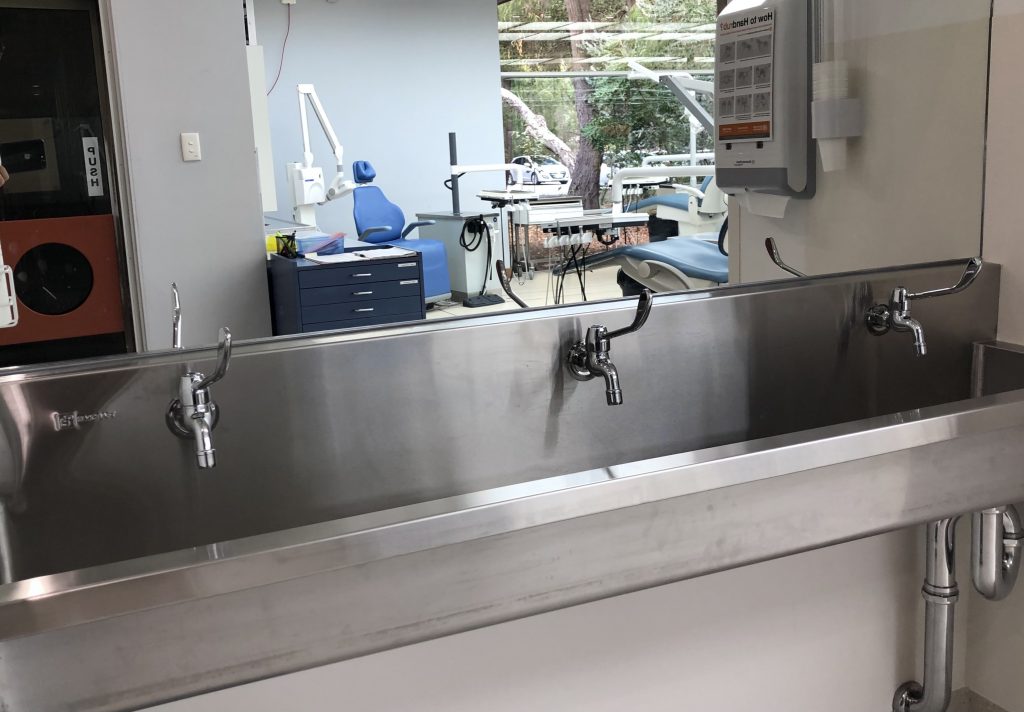

- SIMCRAFT Wall Hung Practical Handwash Trough.
It was such a pleasure to work with the very talented people at SHAPE Australia to provide tailored stainless-steel solutions to the large Mt. Henry Dental Practice.
Contact one of our friendly staff to see how we can custom design and fabricate for your next project.
#MadeinWAforWA
BOB HAWKE COLLEGE – Subiaco
Architect: T&Z Architects and Bateman Architects
Hydraulic Consultant: Hydraulics Design Australia
Builder: PACT Construction
Plumber: Nemjon
Products:
• SIMCRAFT Practical Troughs – 1200mm, 2000mm, 2400mm

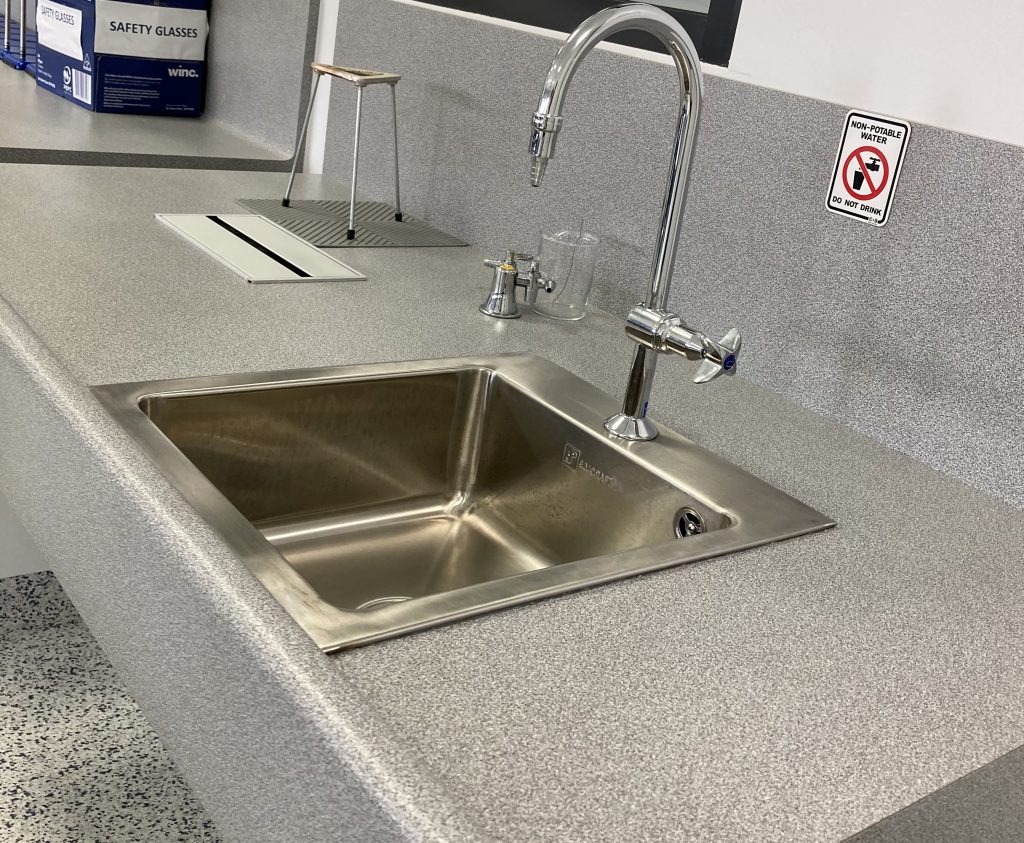

• SIMCRAFT Laboratory Bowls
• SIMCRAFT Central Twin Bowl Laboratory Sink
• SIMCRAFT Cleaner Sink – Large

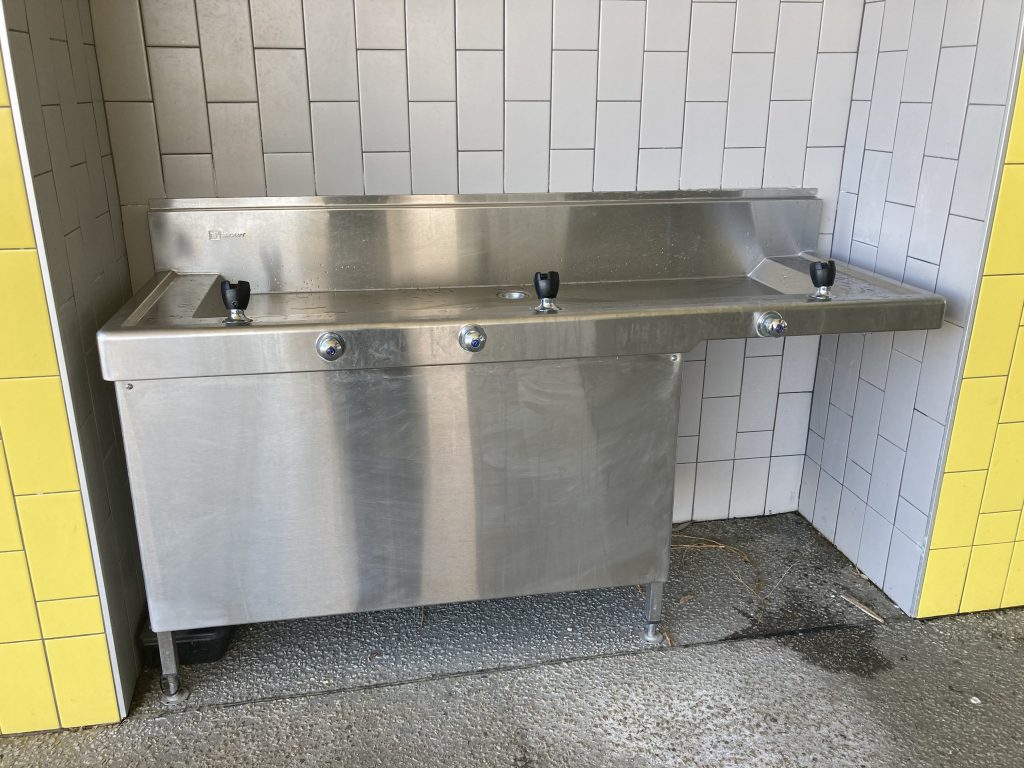

• SIMCRAFT Universal Drink Troughs with bubblers and bottle filler
• SIMCRAFT Flushing Rim to suit tiled floor
SIMCRAFT is proud to have been involved in the first stage of state of the new state-of-the-art inner city school, Bob Hawke College.
This new Western Australian school includes a series of three and four storey buildings that incorporate passive solar design principles, courtesy of two local studios.
The seventy-million-dollar build opened its door last year and the second stage will be completed by 2025, with the School projecting to host more than 2,000 students.
PACT Construction can be commended for their excellence in managing the first stage of this project, and we would like to make special mention of their commitment to and engagement of apprentices. At SIMCRAFT, we feel very strongly about training and employment opportunities for West Aussies. We currently employ Boilermaker and light fabrication Apprentices in our Welshpool factory.
#MadeinWAforWA
COOLIBAH AGED CARE FACILITY – Mandurah
Client: Coolibah Care
Builder: Northerly Group
Merchant: Galvins Plumbing Supplies, Osborne Park
Products include:

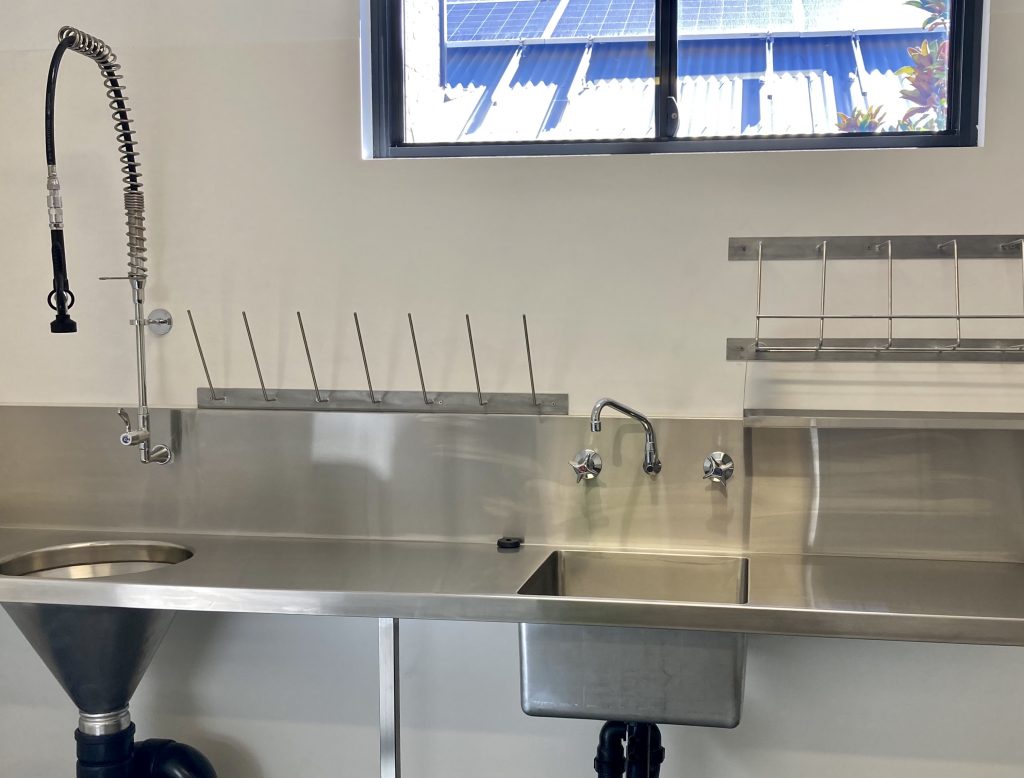

- SIMCRAFT Stainless Steel Custom Dirty Utility Sink with integrated flushing rim and laboratory bowls
- SIMCRAFT Stainless Steel Custom Bed Pan & Bottle Rack. Unit incorporated 7 bottle holders and 6 Bed Pan stores
- SIMCRAFT Stainless Steel Flat Shelf
#MadeinWAforWA
KOLBE CATHOLIC COLLEGE – Rockingham
Client: Kolbe Catholic College

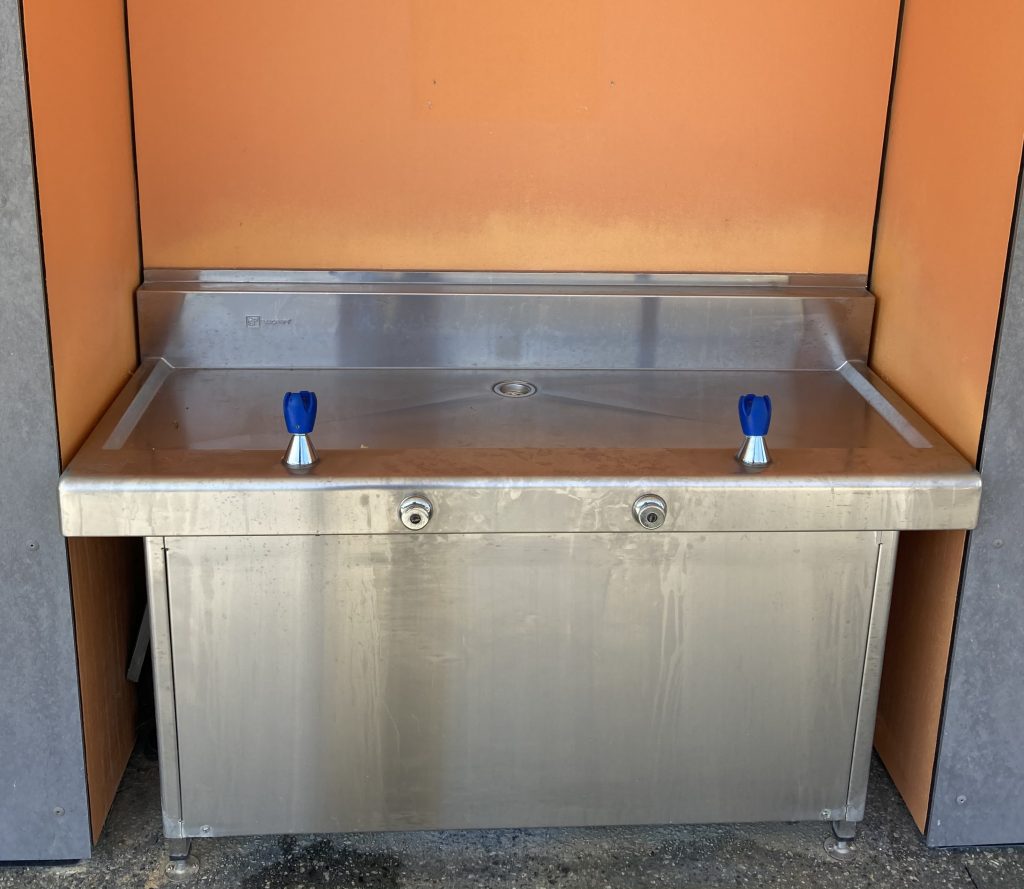

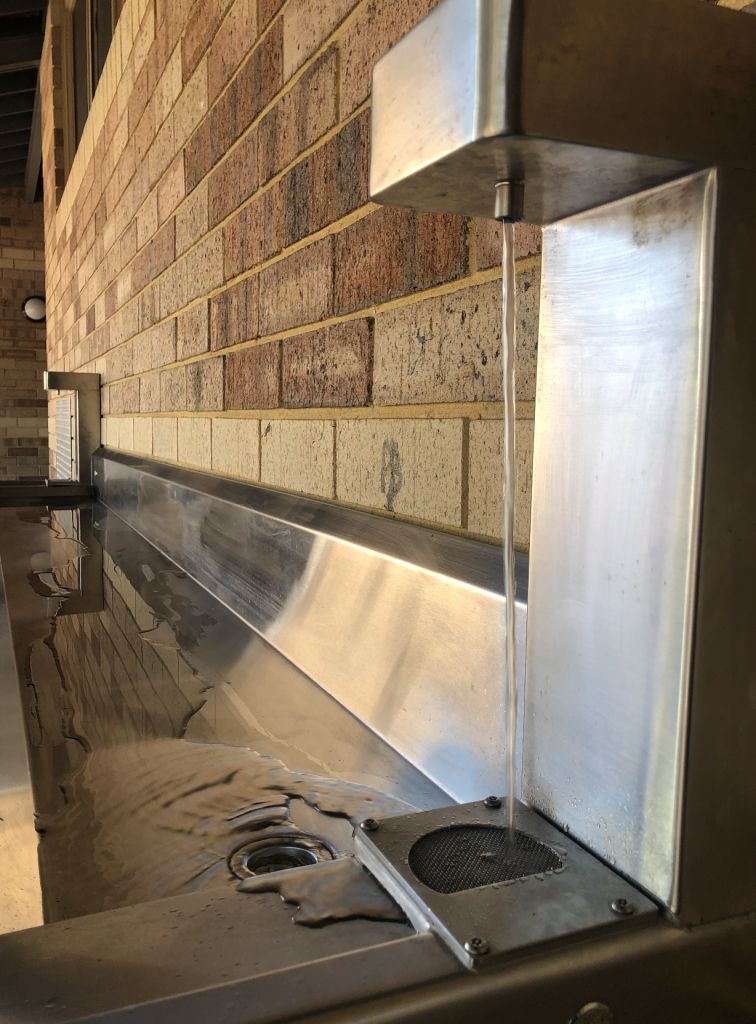

Simcraft Products are proud to have satisfied the clients brief to supply a new lead free Universal Drinking Station. The drink trough is AS1428 compliant for wheel-chair access. It features two bottle fillers fully encased in Stainless Steel Shrouds and incorporates high quality Galvin Engineering electronic Piezo activation. Read more at Galvin Engineering Piezo Button
We also provided a solution to the clients problem of having previously invested in 5 other drinking stations from another Supplier that were no longer entirely suitable as increased hygiene standards requires less touching of little mouths to water bubblers.

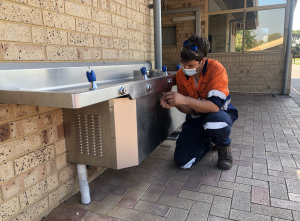

With that in mind, we carried out onsite retrofitting of our custom-made Stainless-Steel Bottle filler, incorporating the same high quality Galvin Engineering electronic Piezo activation as used in our new drinking stations. This solution saved our client a considerable amount.
#MadeinWAforWA
