Ablution Trough

Showing 1–16 of 32 results

  • Ablution Trough

    The Simcraft Ablution Trough is our premium hand-wash trough, crafted from 1.2mm 304 grade stainless steel and featuring internal radius corners for ease of cleaning and 50mm rear hob with tile lip or 150mm boxed upstand for mounting tapware. The trough suits wall-mounted tap configurations as the sloped rear landing and front lip return provide effective splash minimisation while allowing sufficient clearance for effective washing up of hands and arms, making it perfect for sanitation or wash-up areas. Unit is supplied with heavy duty wall brackets and 50mm stainless steel plug and waste. Can be supplied with optional fascia panels for front and sides of trough.

    Options

    Size: Standard or Custom | Outlet Position: left or right hand | Version: wall hung or free standing | Optional Upstand: 150mm boxed or custom size | Optional Side Tile Lip: additional tile lips to 1 or both sides | Optional Tapware: pre-plumbed tapware or tap holes available

  • Accessible Hand Basin

    Wall mounted round disabled hand basin in satin finish is crafted with heavy gauge grade 304 stainless Steel. Conforms to AS1428 and designed for Access and Mobility. Vandal proof with safety radius fascia. Fully welded seamless construction and choice of optional tapware. Basin has 9 litre capacity. Ideal for installation in public amenities, schools, and nightclubs.

    Options

    Size: standard | Optional Tapware: pre-plumbed tapware or tap holes available

  • Activity Trough

    The Simcraft Activity Trough is a versatile trough designed primarily to be inset into a benchtop. It is fabricated from single piece 1.2mm thick 304 grade stainless steel (acid-resistant 316 grade option also available). It features an enlarged rear landing incorporating a rear hob suitable for mounting of tapware whilst still maintaining a wet edge to aid water containment. The trough is fitted as standard with an overflow drain on the rear hob to prevent flooding, and can also be pre-plumbed with suitable tapware. With the ability to be mounted into existing benchtops, this trough is ideal for washup areas in classrooms and laboratories. Comes complete with stainless steel plug and waste (316 grade fittings also available).

    Options

    Size: Standard or Custom | Outlet position: left or right hand | Optional Tapware: pre-plumbed tapware or tap holes available

  • Ambulant Pan

    The Simcraft Ambulant Toilet Pan is a fully WELS and WaterMark certified, robust, seamless and heavy-duty unit ideal for a wide range of ambulant applications. The unit has a smooth flowing, crevice-free design both internally and externally, which facilitates efficient flushing and a continually high overall level of hygiene, and features a single piece front enclosing skirt including an access panel for convenient access to the concealed outlet. Comes complete with rear 40mm BSP inlet and 100mm P or S-trap. Optional anti-vandal seats available or pre drilled seat mounting bracket holes.

    Options

    Size: standard | Trap: 100mm S or P-Trap | Seat Colour: Black, Blue or White

  • Automatic Sensor Flusher

    Galvin Specialised Flowmatic® automatic flusher is fully concealed and utilises advanced technology that easily adapts to the required situation and environment. The demand for automatic flushers has been heightened by the community’s awareness that disease can be
    spread by touching contaminated appliances and also by the increased vandalism of cisterns. The Flowmatic® automatic flusher combats these issues and is your best choice for new and existing projects.

    GFLOW2 Recommended for urinals > 2m

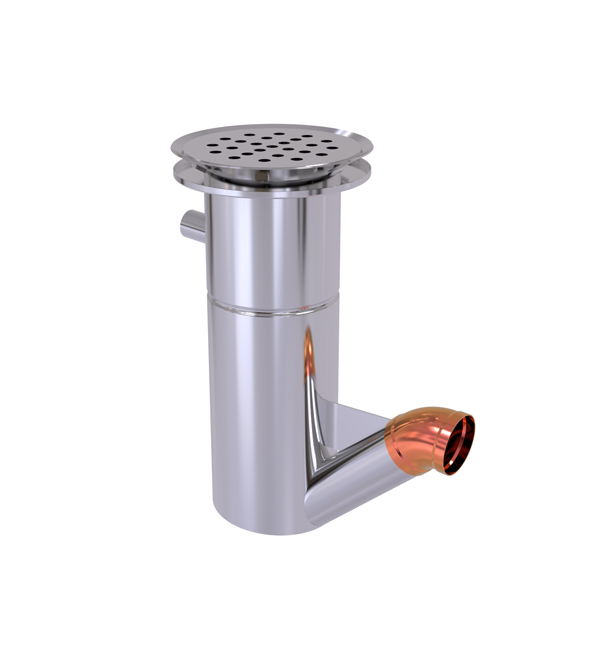

  • Bucket Trap

    The Simcraft Bucket Trap is hand-crafted from 304 grade stainless steel. It features a 225mm diameter cylindrical body with an outlet pipe at the base of the unit and a puddle flange mounted on the outside close to the top. The unit includes a removable perforated bucket which sits snugly in the cylindrical body, where it catches detritus such as food scraps or solid waste from the waste water, which falls to the outlet below. Also included with the unit is a stainless steel grate to sit on top and a copper elbow connection for the outlet. The unit comes in both concrete and vinyl floor configurations, with inlet pipes optional. This unit is ideal for applications such as commercial kitchens where solid waste should be removed from waste water.

    Options

    Size: standard | Version: concrete or vinyl floor | Inlet: 40,50,65 or 100mm | Outlet: 80 or 100mm

  • Challenger Trough

    The Challenger Trough is an economical yet durable and versatile unit which is available in a range of standard sizes. Crafted from single sheet 304 stainless steel, the design features a 100mm rear hob for mounting tapware and rear tile lip for effective waterproofing. A blade upstand can be incorporated for additional splash protection on the surrounding area. Includes 50mm stainless steel outlet and heavy duty brackets for wall mounting.

    Options

    Size: Standard or Custom | Outlet position: left or right hand | Upstand: 150mm blade or custom size | Optional Side Tile Lip: additional tile lips to 1 or both sides | Optional Tapware: pre-plumbed tapware or tap holes available

  • Cleaners Sink

    The Simcraft Cleaners Sink is ideal for use by cleaners and janitors of commercial buildings for the removal of waste water from cleaning floors. The sink is crafted from 304 grade stainless steel and has a highly durable design which resists wear and tear. It comes in two standard sizes (21 or 30 Litre) and features a 160mm deep bowl with heavy duty hinged grate to facilitate emptying of mop buckets with a minimum of heavy lifting, as well as providing bucket storage when not in use. Supplied in wall hung configuration with optional adjustable front support legs. Rear upstand also optional.

    Options

    Size: small or large | Optional Upstand: 100mm or 600mm blade upstand | Optional Supoort: front support legs with adjustable feet

  • Disabled Pan

    The Simcraft Disabled Pan is an AS1428-compliant version of our popular Toilet Pan unit. This robust, seamless and heavy-duty toilet features a smooth flowing, crevice-free design both internally and externally, which facilitates efficient flushing and a continually high overall level of hygiene, and features a single piece front enclosing skirt including an access panel for convenient access to the concealed outlet. The extended rear section aids accessibility, and the unit is fully WELS and WaterMark certified. Comes complete with rear 40mm BSP inlet and 100mm P or S-trap. Optional anti-vandal seats available or pre drilled seat mounting bracket holes.

    Options

    Size: standard | Trap: 100mm S or P-Trap | Seat Colour: Black, Blue or White

  • Drink Trough

    The Simcraft Drink Trough is our base level drinking unit. Fabricated from single sheet 1.2mm thick 304 grade stainless steel, the unit features a 110mm rear upstand as well as an angled front hob with raised lip which is ideal for mounting drinking bubblers whilst ensuring maximum water containment towards the included 50mm outlet. The unit comes pre-plumbed as standard with G316 Stainless Steel Lead-Free bubblers and push valves. The unit is also supplied with heavy duty brackets for wall hanging or available in a free standing version.

    Options

    Size: 6 standard sizes | Outlet position: left or right hand | Version: wall hung or free standing | Optional Auto-rinse: electronic push buttons with automatic hygiene rinse to flush lines | Optional Jug Filler: ideal for schools & sport grounds

    1000mm – 2 Person
    1500mm – 3 Person
    2000mm – 4 Person
    2500mm – 5 Person
    3000mm – 6 Person

  • Enclosed-Grate-Style-Urinal Simcraft Products

    Enclosed Grate Style Urinal

    A high-traffic urinal with a large grated catchment area and enclosed sides, offering protection for the surrounding walls. Unit is crafted from 304 stainless steel, with reinforced rear for durability and anti-drum effect, and hinged grate and internal radius corners facilitate ease of cleaning. Flushing sparge covers full length of the rear of the unit as well as both side panels for complete hygiene after every flush. The ideal product for schools and licenced venues. Comes supplied with removable domed outlet grate. WaterMark and WELS certified.

    Options

    Size: Standard or Custom | Flush pipe: Rear or Top Entry
    Outlet Position: Centre, Left or Right hand

    Optional Automatic Sensor Flusher: Automatic Sensor Flusher

  • Evolution Trough

    The Simcraft Evolution Trough is a versatile wall-mounted unit crafted from 1.2mm thick 304 grade stainless steel. Features a 150mm boxed upstand for mounting tapware whilst concealing plumbing without the need to run pipes through walls. Internal radius corners allow for ease of cleaning, whilst the rounded external corners and folded wet edges provide a safe exterior, making it ideal for daycare centres, schools, colleges or any high-traffic area. Includes 50mm stainless steel plug and waste and heavy duty wall-mounting brackets, and is also available with pre-plumbed tapware.

    Options

    Size: Standard or Custom | Outlet position: left or right hand | Version: wall hung or free standing | Upstand: 150mm boxed or custom size | Optional Tapware: pre-plumbed tapware or tap holes available

  • Floor Cleaners Sink

    The Simcraft Floor Cleaners Sink is a floor-mounted version of our popular Cleaners Sink. It is ideal for use by cleaners and janitors of commercial buildings for the removal of waste water from cleaning floors. The sink is crafted from 304 grade stainless steel and has a highly durable design which resists wear and tear. It comes in two standard sizes (21 or 30 Litre) and features a 160mm deep bowl with heavy duty hinged grate to facilitate emptying of mop buckets with a minimum of heavy lifting, as well as providing bucket storage when not in use. Supplied with heavy duty floor brackets. Rear blade upstand optional.

    Options

    Size: small or large |  Upstand: 100mm or 600mm blade upstand

  • Floor Flushing Rim

    The Simcraft Floor Flushing Rim is a conical waste removal unit fabricated from 316 grade stainless steel. The unit is designed to be set into the floor to facilitate immediate and hygienic removal of waste from the surrounding area. The unit is connected to a flush valve, and when flushed the unit’s folded upper lip effectively distributes the flushed water around the top of the cone, from which point the water runs down and flushes all waste from the unit. The unit comes with a 110mm outlet as standard for effective removal of both liquid and solid waste. Adjustable S.S. 110mm P-trap can be provided. Suitable for use in hospitals, aged care centres, laboratories and medical facilities.

    Options

    Size: standard | Version: concrete, vinyl floor or transportable | Optional P-trap: 110mm S.S. adjustable P-trap

  • Floor Mounted Pan

    The Simcraft Toilet Pan is a fully WELS and WaterMark certified, robust, seamless and heavy-duty unit ideal for a wide range of applications. The unit has a smooth flowing, crevice-free design both internally and externally, which facilitates efficient flushing and a continually high overall level of hygiene, and features a single piece front enclosing skirt including an access panel for convenient access to the concealed outlet. Comes complete with rear 40mm BSP inlet and 100mm P or S-trap. Optional anti-vandal seats available or pre drilled seat mounting bracket holes.

    Options

    Size: standard | Trap: 100mm S or P-Trap | Seat ColourBlack, Blue or White

  • Floor Style Urinal

    An economical, durable and easy to clean model, with a one piece design from 304 grade stainless and rear wall reinforcement providing decades of strength. Perfect for installation in confined areas or those with tile step or sloping/graded floors. Full-length flushing sparge ensures complete coverage of rear wall. Comes supplied with removable domed outlet grate. WaterMark and WELS certified.

    Options

    Size: Standard or Custom | Flush pipe: Rear or Top Entry | Outlet size: 100mm
    Outlet Position: Center, Left or Right hand

    Optional Automatic Sensor Flusher: Automatic Sensor Flusher
